P80NF55 MOSFET Price || P80NF55 N-Channel 55V 80A MOSFET.

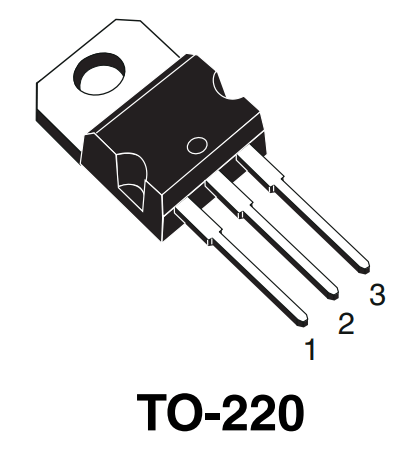

N-channel 55 V, 0.0065 Ω, 80 A, TO-220 STripFET™ Power MOSFET.

This Power MOSFET is the latest development of STMicroelectronics unique “single feature size” strip-based process. The resulting transistor shows extremely high packing density for low onresistance, rugged avalance characteristics and less critical alignment steps therefore a remarkable manufacturing reproducibility.

Absolute maximum ratings :

• VDS Drain-source voltage (VGS = 0) 55 V
• VGS Gate- source voltage ±20 V
• ID Drain current (continuos) at TC = 25 °C 80 A
• PTOT Total dissipation at TC = 25 °C 300 W
• Tj Tstg Operating junction temperature Storage temperature -55 to 175 °C

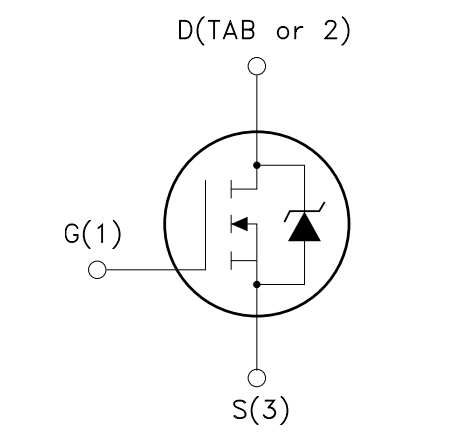

P80NF55 MOSFET Circuit :

Download P80NF55 MOSFET Datasheet PDF
