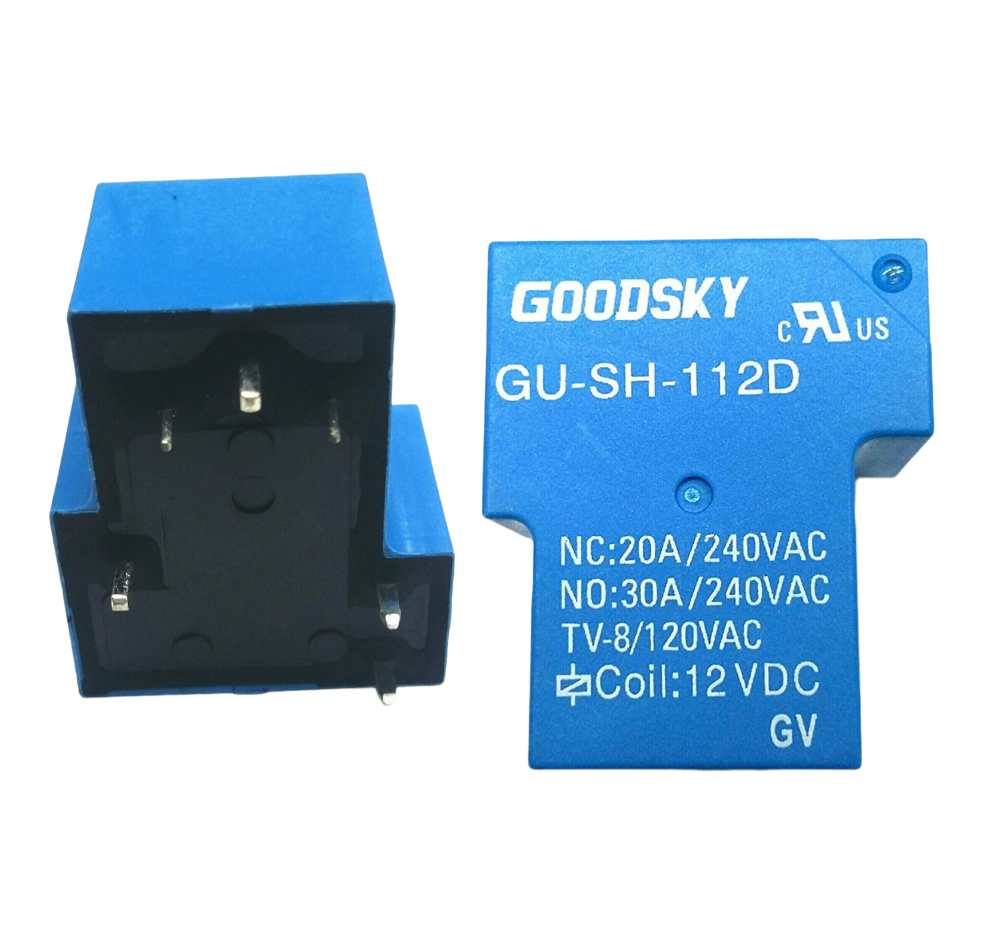

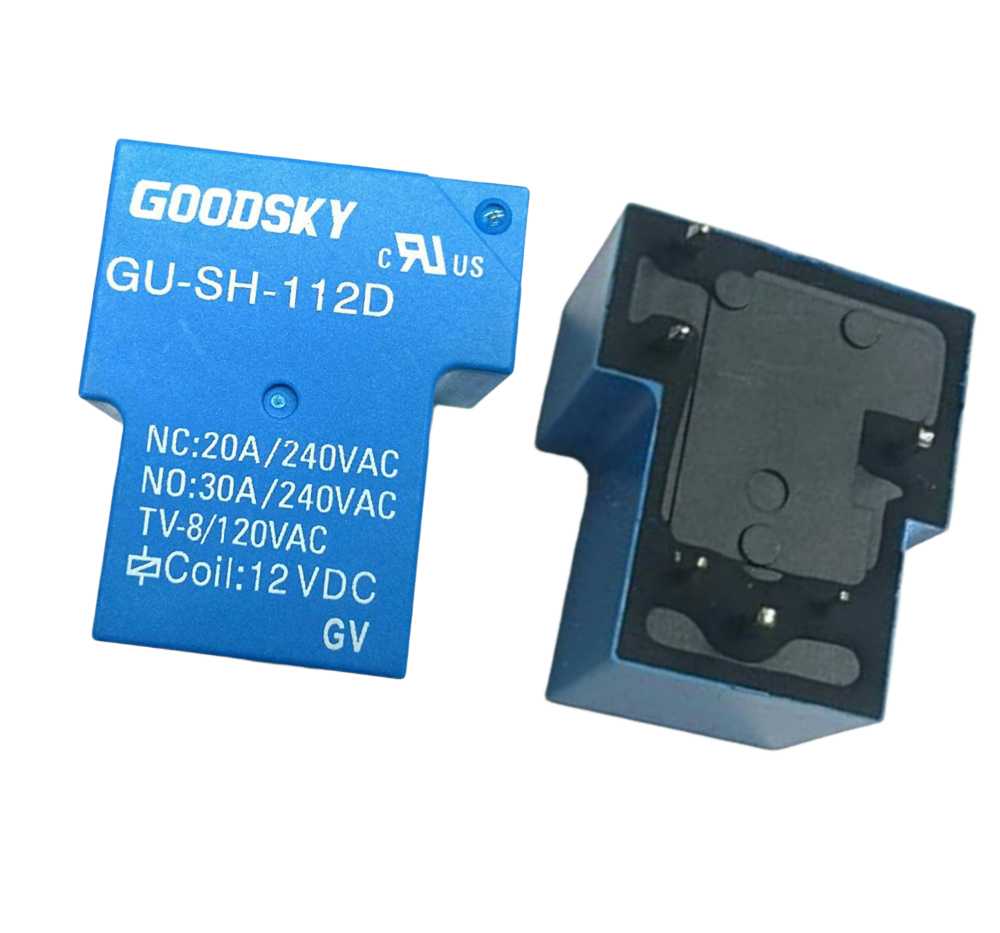

GoodSky Relay 12V 30A - GU-SH-112D

GoodSky Relay 12V 30A - GU-SH-112D.

MAIN FEATURE :

• Single contact Form (SPST) series Relay offers switching capacity 30A in small size.
• Dust cover, sealed & unclosed cover types are available.
• UL Class F insulation available.
• Halogen Free series available. 5. Comply with RoHS and REACH regulations.

APPLICATION :

• Domestic Appliances, Heating, Ventilating and Conditioning System, Car Control Switching Box, General Power Switching Applications.
• UPS & Inverter

SPECIFICATION :

• Contact Resistance... 100m Max.@1A,6VDC.
• Operate Time.. 15 mSec. Max.
• Release Time ..10 mSec. Max
• Dielectric Strength: Between Coil & Contact.......1,500VAC at 50/60 Hz for one minute Between Contacts ................1,500VAC at 50/60 Hz for one minute
• Insulation Resistance...........100 Mega Min. at 500VDC
• Coil Temperature Rise .... 60°C Max.
• Temperature Range ........ -25 +55°C

GU-D Unclosed: 1 Common terminal : 5 PIN Relay For Luminous Inverter and Other electronic.
