7CW MMBT2222A NPN switching transistor (1P Marking)

7CW SMD Transistor MMBT2222A NPN switching transistor.

NPN switching transistor in a SOT23 plastic package. PNP complement: PMBT2907A.

FEATURES :

• High current (max. 600 mA)
• Low voltage (max. 40 V).
• Switching and linear amplification.
• MARKING CODE : 7CW
• TYPE NUMBER : MMBT2222A

Using a Transistor :

•  Inverter and UPS
• Other Electronic Device
• PACKAGE : SOT23


LIMITING VALUES :

• VCBO collector-base voltage open emitter − 75 V
• VCEO collector-emitter voltage open base − 40 V
• VEBO emitter-base voltage open collector − 6 V
• IC collector current (DC) − 600 mA
• ICM peak collector current − 800 mA
• IBM peak base current − 200 mA
• Ptot total power dissipation Tamb ≤ 25 °C; note 1 − 250 mW
• Tstg storage temperature −65 +150 °C
• Tj junction temperature − 150 °C
• Tamb operating ambient temperature −65 +150 °C

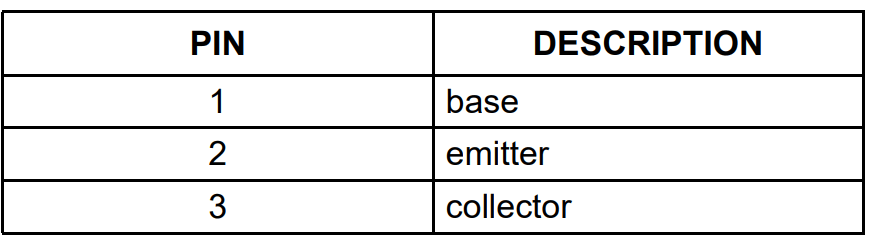

7CW SMD Transistor Pinout :

Download 7CW SMD Transistor Datasheet PDF
