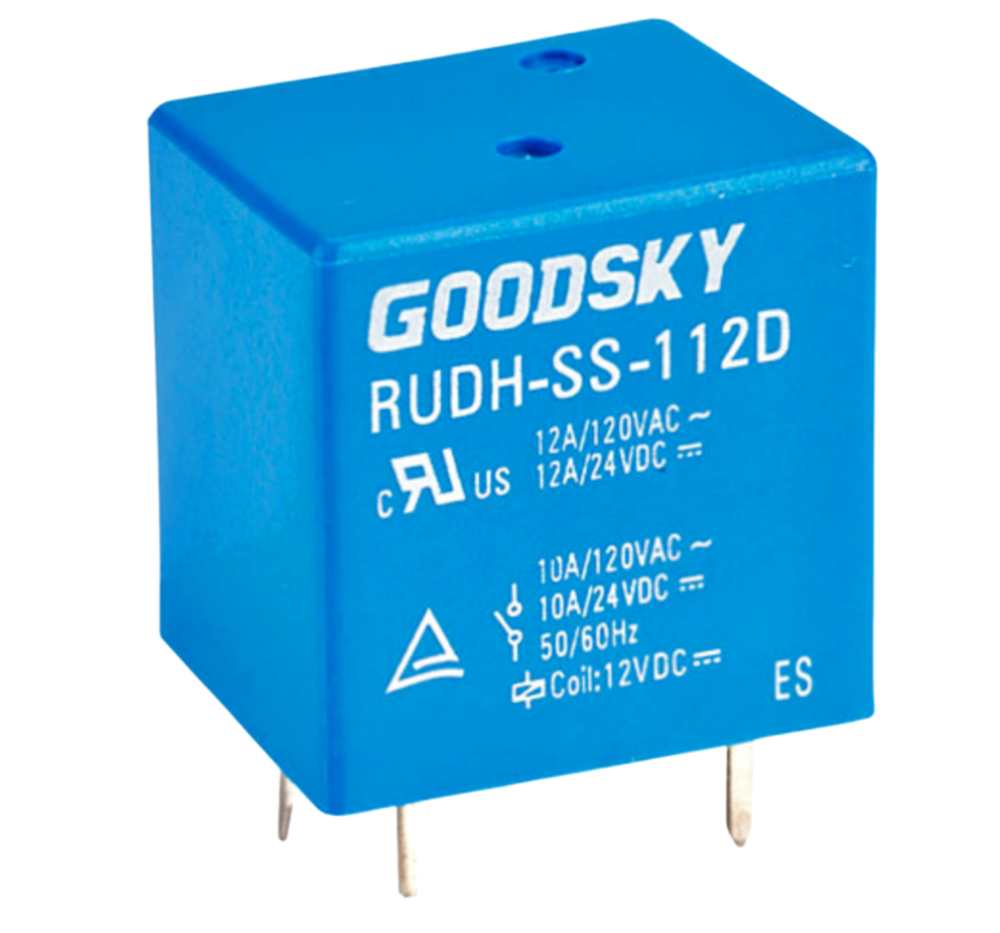

GoodSky 12V 10A RUDH-SS-112D Relay

GoodSky 12V 10A RUDH-SS-112D Relay.

MAIN FEATURE :

• High switching current up to 15A in small size.
• Sugar-Cube relay suitable for various applications.
• UL, C-UL & TÜV safety standard approved.
• UL Class F insulation available.
• Highly adapt to harsh conditions with high temperature and vibration.
• Halogen Free series available.
• Comply with RoHS and REACH regulations.
• In accordance with IEC 60335-1 Glow Wire requirements for home appliances.

APPLICATION :

• Domestic Appliances, Office Machines, Audio Equipment, Coffeepot, Control Units, etc
• Inverter

PERFORMANCE :

• Contact Resistance ...........100m Max.@1A,6VDC
• Operate Time........................10mSec. Max.
• Release Time .......................5 mSec. Max
• Dielectric Strength: Between Coil & Contact.......1,000VAC at 50/60 Hz for one minute Between Contacts ................500VAC at 50/60 Hz for one minute
• Coil Temperature Rise .... 35°C Max
• Contact Form SPST
• Rated Carrying Current : 10A
• Contact Material : Ag Alloy

Download GoodSky 12V 10A RUDH-SS-112D Relay Datasheet pdf...
