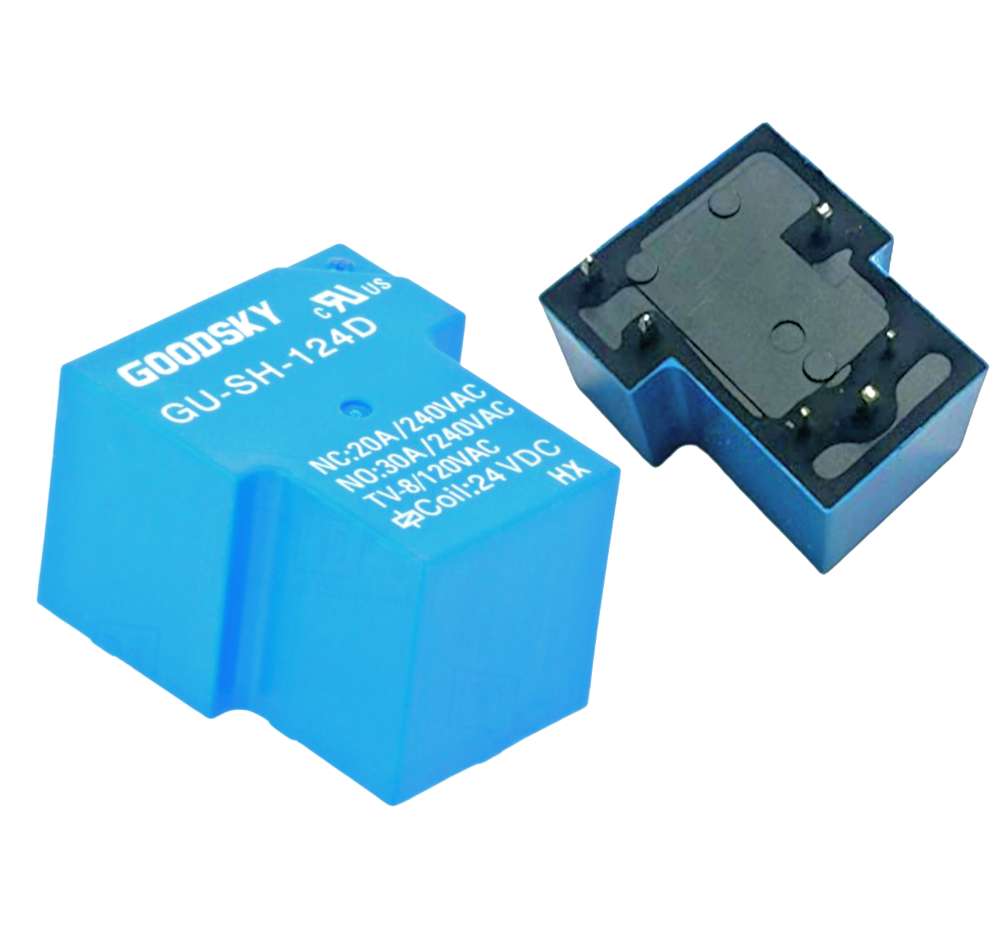

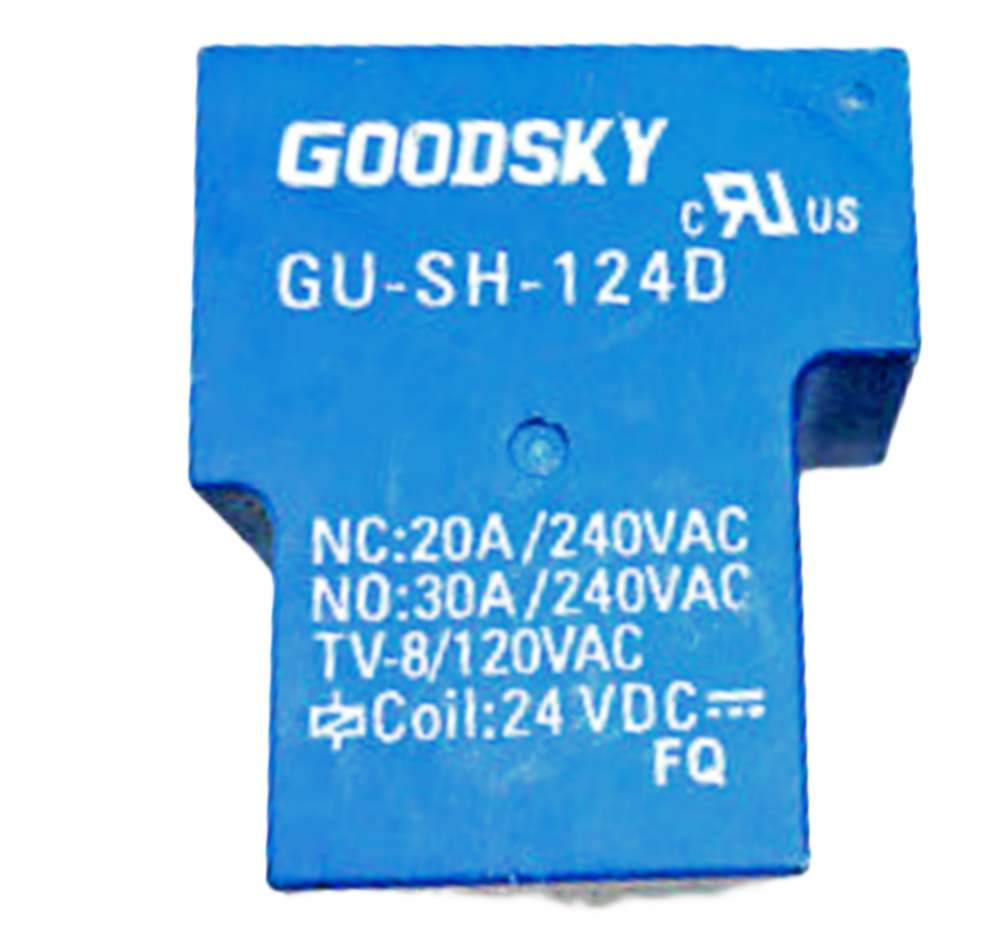

GoodSky Relay 24V 30A GU-SH-124D.

MAIN FEATURE :

  • Single contact Form (SPST) series Relay offers switching capacity 30A in small size.
  • Dust cover, sealed & unclosed cover types are available.
  • UL Class F insulation available.
  • Halogen Free series available.
  • Comply with RoHS and REACH regulations.

APPLICATION :

  • Domestic Appliances, Heating, Ventilating and Conditioning System, Car Control Switching Box, General Power Switching Applications.
  • UPS & Inverter

SPECIFICATION :

  • Contact Resistance... 100m Max.@1A,6VDC.
  • Operate Time.. 15 mSec. Max.
  • Release Time ..10 mSec. Max
  • Dielectric Strength: Between Coil & Contact.......1,500VAC at 50/60 Hz for one minute Between Contacts ................1,500VAC at 50/60 Hz for one minute
  • Insulation Resistance...........100 Mega Min. at 500VDC
  • Coil Temperature Rise .... 60°C Max.
  • Temperature Range ........ -25 +55°C

GU-D Unclosed: 1 Common terminal : 5 PIN Relay For Luminous Inverter and Other electronic.

Download GoodSky Relay 24V 30A - GU-SH-124D Relay Datasheet pdf from here......
