SJ2B SMD IC ( LMR14206)Step-Down Voltage Regulator

(3 reviews)
Estimate Shipping Time: 10 Days

Price
Rs99.00 /PC
Quantity
(In stock)
Total Price
Share

Reviews & Ratings

5 out of 5.0
(3 reviews)
  • Punku

    15-09-2022

    Well everything is good

  • Raju

    15-09-2022

    best price and good quality

  • Battery max

    28-10-2022

    I am buy SJ2B IC for Luminous inverter and IC is original TI brand I really like ?

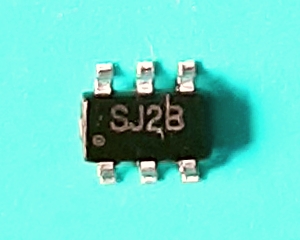

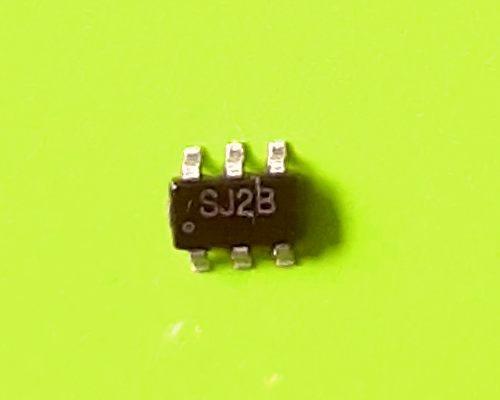

SJ2B IC SMD LMR14206XMKX/NOPB TI.

LMR14206 SIMPLE SWITCHER® 42Vin, 0.6A Step-Down Voltage Regulator in SOT-23.

The LMR14206 is optimized for up to 600 mA load current with a 0.765V nominal feedback voltage. Additional features include: thermal shutdown, VIN under-voltage lockout, and gate drive under-voltage lockout. The LMR14206 is available in a low profile 6- pin SOT package.

Features :

  • Input Voltage Range of 4.5V to 42V
  • Output Voltage Range of 0.765V to 34V
  • Output Vurrent up to 0.6A
  • 1.25 MHz Switching Frequency
  • Low Shutdown Iq, 16 µA Typical
  • Short Circuit Protected
  • Internally Compensated
  • Soft-Start Function
  • Thin 6-Pin SOT Package (2.97 x 1.65 x 1mm)
  • Fully Enabled for WEBENCH® Power Designer

Applications :

  • Point-of-Load Conversions from 5V, 12V, and 24V Rails
  • Space Constrained Applications
  • Battery Powered Equipment
  • Industrial Distributed Power Applications
  • Power Meters
  • Portable Hand-Held Instruments

Connection Diagram :

Absolute Maximum Ratings :

  • VIN -0.3V to +45V
  • SHDN -0.3V to (VIN+0.3V) <45V
  • SW Voltage -0.3V to +45V
  • CB Voltage above SW Voltage 7V
  • FB Voltage -0.3V to +5V
  • Maximum Junction Temperature 150°C
Download  SJ2B Datasheet pdf.
