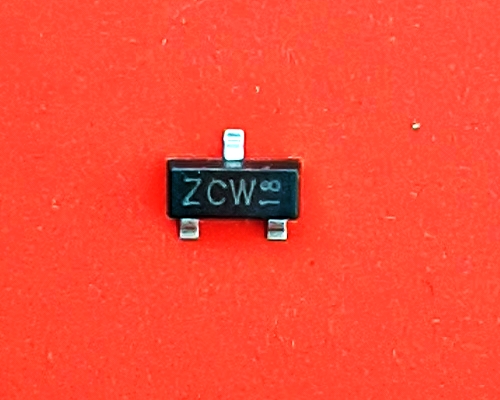

ZCW 50V 3A NPN SMD Transistor

(1 reviews)
Estimate Shipping Time: 2 Days

Price
Rs10.00 /PC
Quantity
(In stock)
Total Price
Share

Reviews & Ratings

5 out of 5.0
(1 reviews)
  • Raksha Sharma

    15-02-2023

    Good

ZCW 50V 3A NPN SMD Transistor. || ZCW SMD Transistor Price.

NPN low VCEsat transistor in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package. PNP complement: PBSS5350T.

plastic, surface-mounted package; 3 terminals; 1.9 mm pitch; 2.9 mm x 1.3 mm x 1 mm body

Features :

  • Low collector-emitter saturation voltage VCEsat and corresponding low RCEsat
  • High collector current capability
  • High collector current gain
  • Improved efficiency due to reduced heat generation
  • Type number: PBSS4350T
  • Marking code: ZCW

Applications :

  • Power management applications
  • Low and medium power DC/DC converters
  • Supply line switching
  • Battery chargers
  • Linear voltage regulation with low voltage drop-out (LDO)

ZCW Transistor Pinout :

Limiting values :

  • VCBO collector-base voltage open emitter - 50 V
  • VCEO collector-emitter voltage open base - 50 V
  • VEBO emitter-base voltage open collector - 5 V
  • IC collector current - 2 A
  • ICRM repetitive peak collector current δ ≤ 0.25; tp ≤ 100 ms - 3 A
  • ICM peak collector current single pulse; tp ≤ 1 ms - 5 A
  • IB base current - 0.5 A
  • Tj junction temperature - 150 °C
  • fT transition frequency: 100  - MHz
 Download ZCW SMD Transistor Datasheet PDF
