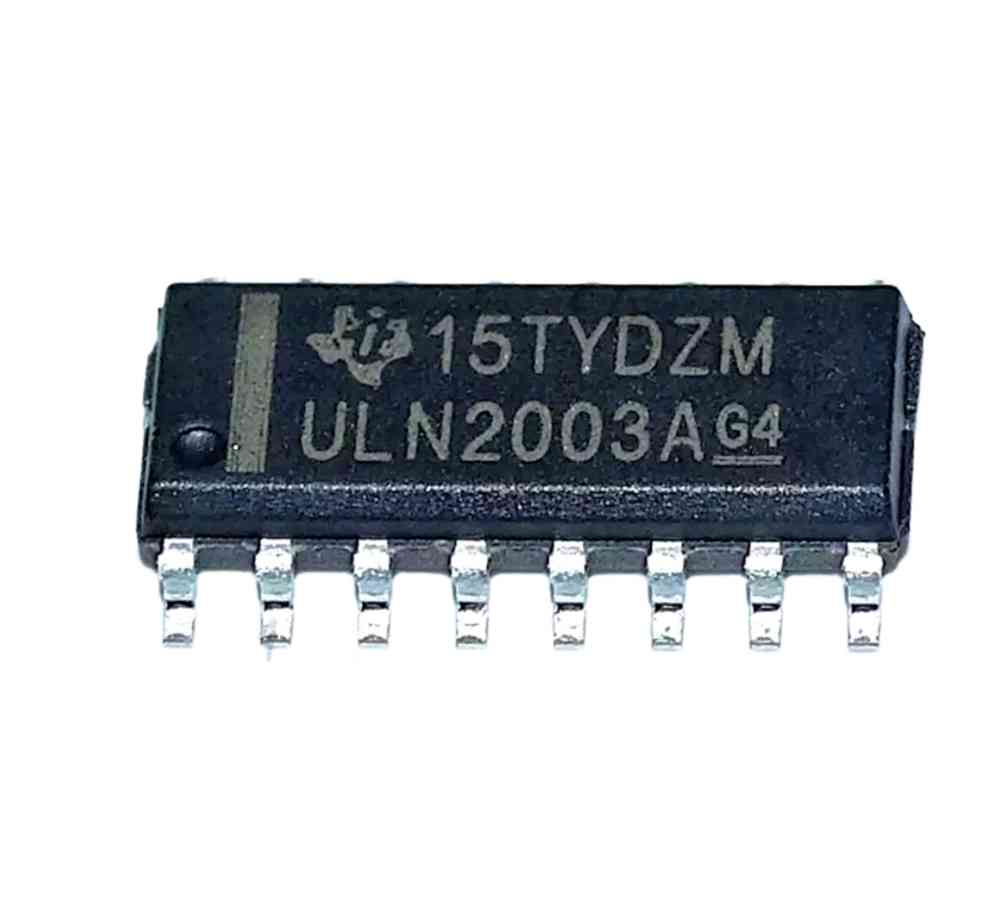

ULN2003AN IC Transistor Arrays SMD

(0 reviews)
Estimate Shipping Time: 10 Days

Price
Rs10.00 /PCs
Quantity
(In stock)
Total Price
Share

Reviews & Ratings

0 out of 5.0
(0 reviews)
There have been no reviews for this product yet.
ULN2003AN High-Voltage, High-Current Darlington Transistor Arrays.

The ULN2003A devices have a 10.5-kΩ series base resistor to allow operation directly from CMOS devices that use supply voltages of 6 V to 15 V. The required input current of the ULN2003A device is below that of the ULN2004A devices, and the required voltage is less than that required by the ULN2002A device.

The ULN2002A device is designed specifically for use with 14-V to 25-V PMOS devices. Each input of this device has a Zener diode and resistor in series to control the input current to a safe limit. The ULx2003A devices have a 2.7-kΩ series base resistor for each Darlington pair for operation directly with TTL or 5-V CMOS devices.

Features

  • 500-mA-Rated Collector Current (Single Output)
  • High-Voltage Outputs: 50 V
  • Output Clamp Diodes
  • Inputs Compatible With Various Types of Logic
  • Relay-Driver Application

Applications :

  • Relay Drivers
  • Stepper and DC Brushed Motor Drivers
  • Lamp Drivers
  • Display Drivers (LED and Gas Discharge)
  • Line Drivers, Logic Buffers

UNL2003 Pin Configuration and Functions :



Specifications

  • VCC Collector-emitter voltage 50 V
  • VI Input voltage 30 V
  • IOK Output clamp current 500 mA Total emitter-terminal current –2.5 A
  • TJ Operating virtual junction temperature 150 °C

ULN2003AN PINOUT

Download UNL2003A IC datasheet pdf.
