1P SMD Transistor PMBT2222A NPN Switching Transistor.

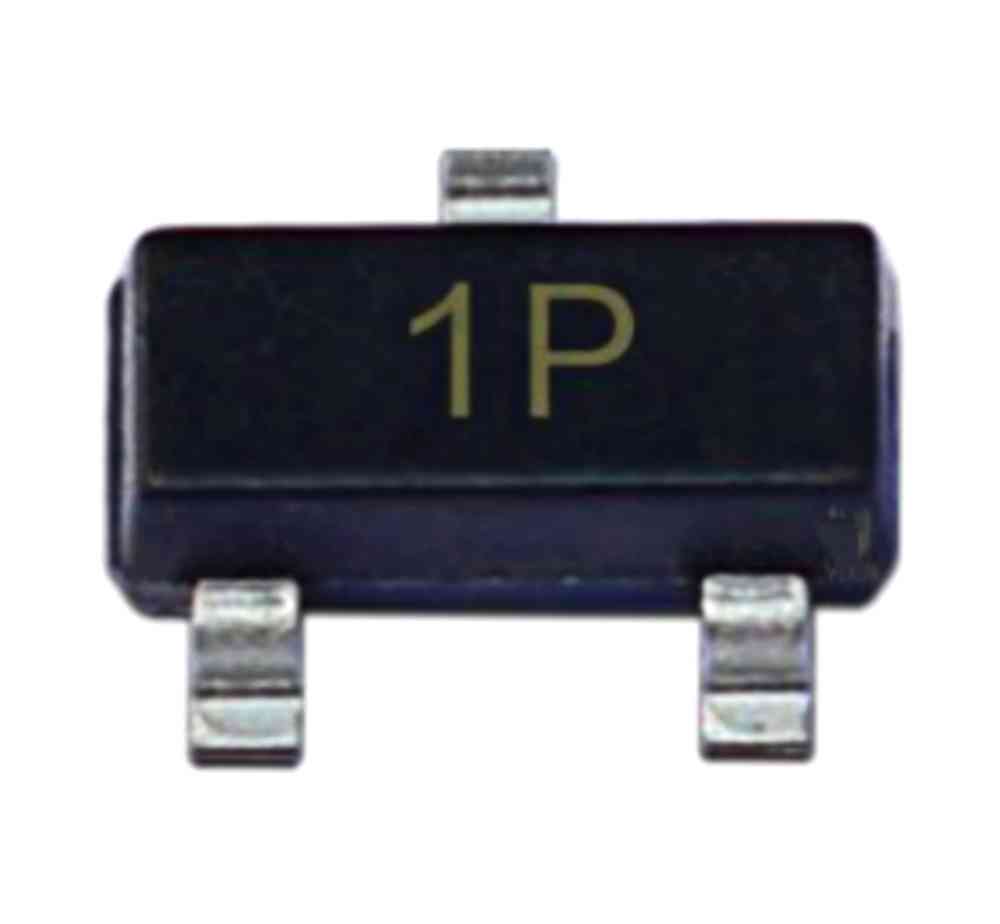

W1P SMD Trnasistor NPN switching transistor in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package. plastic, surface-mounted package; 3 terminals; 1.9 mm pitch; 2.9 mm x 1.3 mm x 1 mm body

Features :

• High current (max. 600 mA)
• Low voltage (max. 40 V)
• AEC-Q101 qualified
• Type number : PMBT2222A
• Marking code : W1P
• Package : SOT23


Applications :

• Switching and linear amplification
• UPS and Inverter

Limiting values :

• VCBO collector-base voltage open emitter - 75 V
• VCEO collector-emitter voltage open base - 40 V
• VEBO emitter-base voltage open collector - 6 V
• IC collector current - 600 mA
• ICM peak collector current - 800 mA
• IBM peak base current - 200 mA
• Ptot total power dissipation Tamb ≤ 25 °C [1] - 250 mW
• Tj
• junction temperature - 150 °C
• Tamb ambient temperature -65 150 °C
• Tstg storage temperature -65 150 °C

Download 1P Transistor datasheet pdf .....
