t2F SMD Transistor PMBT2907A 60V, 600 mA PNP switching transistor.

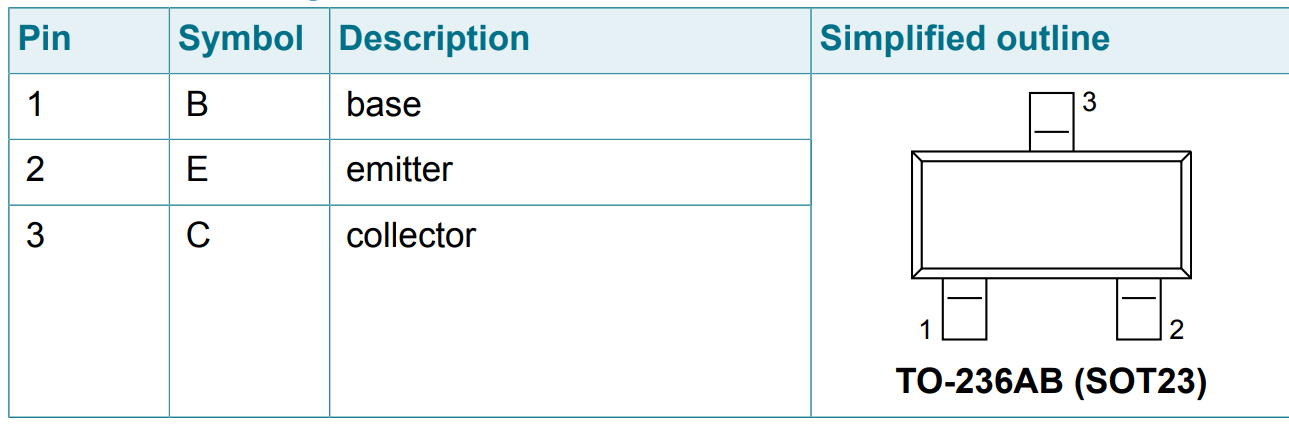

PNP switching transistor in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package. NPN complement: PMBT2222A 40V variant: PMBT2907. plastic surface-mounted package; 3 leads
Features :
- Single general-purpose switching transistor
- AEC-Q101 qualified
- Switching and linear amplification
- Package : SOT23
- Type number : PMBT2907A
- Marking code : t2F
Limiting values :
- VCBO collector-base voltage open emitter - -60 V
- VCEO collector-emitter voltage open base - -60 V
- VEBO emitter-base voltage open collector - -5 V
- IC collector current - -600 mA
- ICM peak collector current - -800 mA
- IBM peak base current
- single pulse; tp ≤ 1 ms
- - -200 mA
- Ptot total power dissipation Tamb ≤ 25 °C [1] - 250 mW
- Tj
- junction temperature - 150 °C
- Tamb ambient temperature -65 150 °C
- Tstg storage temperature -65 150 °C
