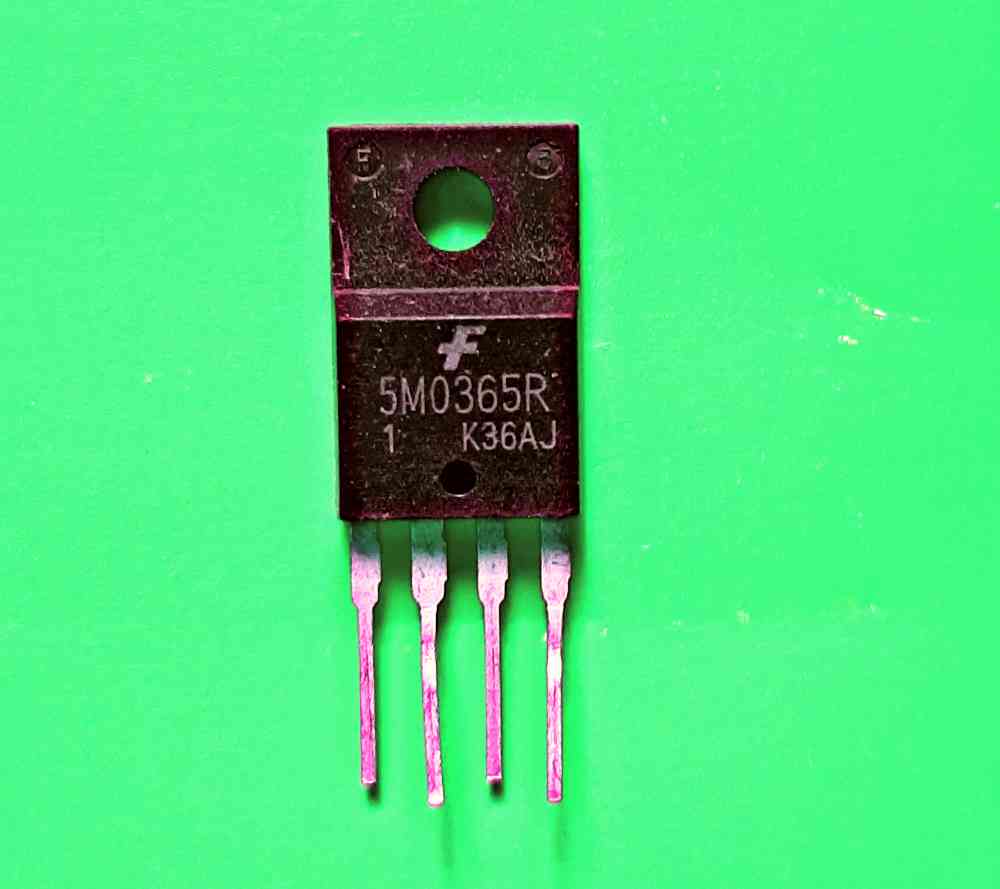

5M0365R Fairchild Power Switch (KA5M0365RN)
5M0365R Power Supply IC.
KA5M0365RN-SERIES KA5M0365RN, KA5L0365RN Fairchild Power Switch(FPS).
The Fairchild Power Switch(FPS) product family is specially designed for an off-line SMPS with minimal external components. The Fairchild Power Switch(FPS) consists of a high voltage power SenseFET and a current mode PWM IC. Included PWM controller integrates the fixed frequency oscillator, the under voltage lock-out, the leading edge blanking, the optimized gate turn-on/turn-off driver, the thermal shutdown protection, the over voltage protection, and the temperature compensated precision current sources for the loop compensation and the fault protection circuitry.
Features :
- Precision Fixed Operating Frequency (67/50kHz)
- Low Start-up Current(Typ. 100uA)
- Pulse by Pulse Current Limiting
- Over Current Protection
- Over Voltage Protection (Min. 25V)
- Internal Thermal Shutdown Function
- Under Voltage Lockout
- Internal High Voltage Sense FET
- Auto-Restart Mode
Applications :
- SMPS for VCR, SVR, STB, DVD & DVCD
- SMPS for Printer, Facsimile & Scanner
- Adaptor for Camcorder
- Inverter and power supply
Absolute Maximum Ratings :
- Drain-Gate Voltage (RGS=1MΩ) VDGR 650 V
- Gate-Source (GND) Voltage VGS ±30 V
- Drain Current Pulsed (1) IDM 3 ADC
- Continuous Drain Current (Ta=25°C) ID 0.42 ADC
- Total Power Dissipation PD 1.56 W
- Operating Junction Temperature. TJ +160 °C
Download 5M0365R datasheet pdf.
-
