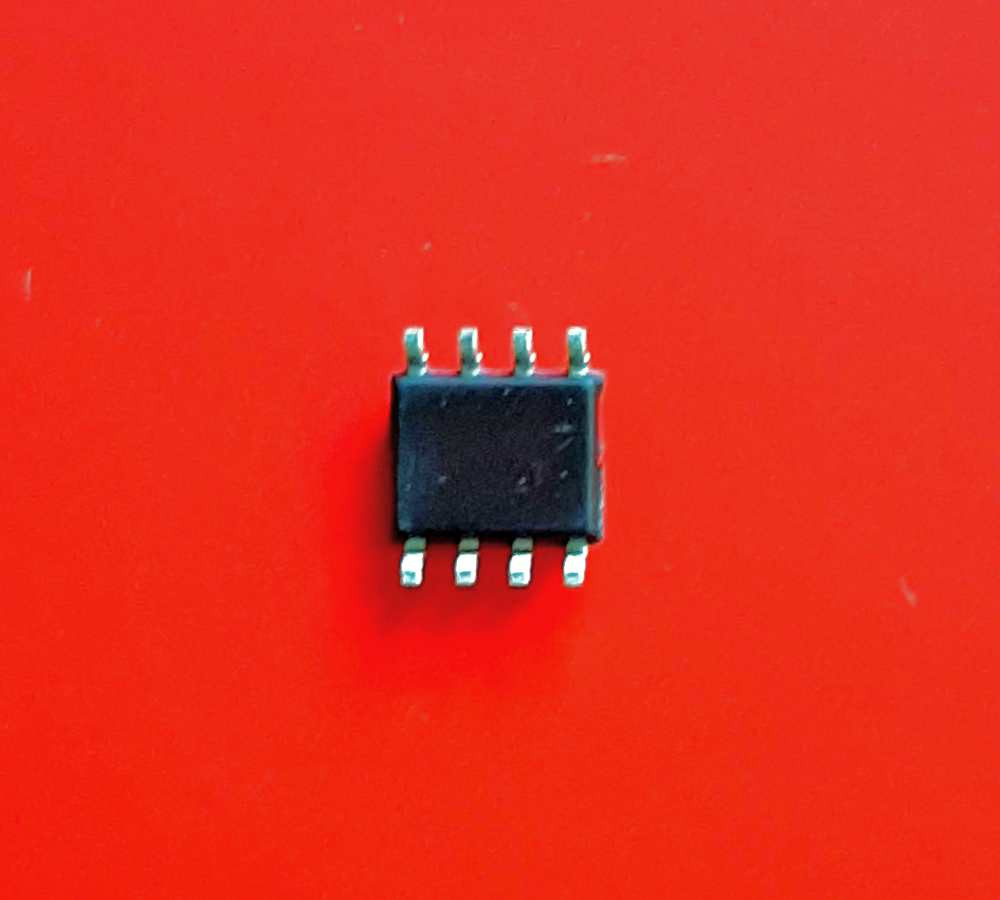

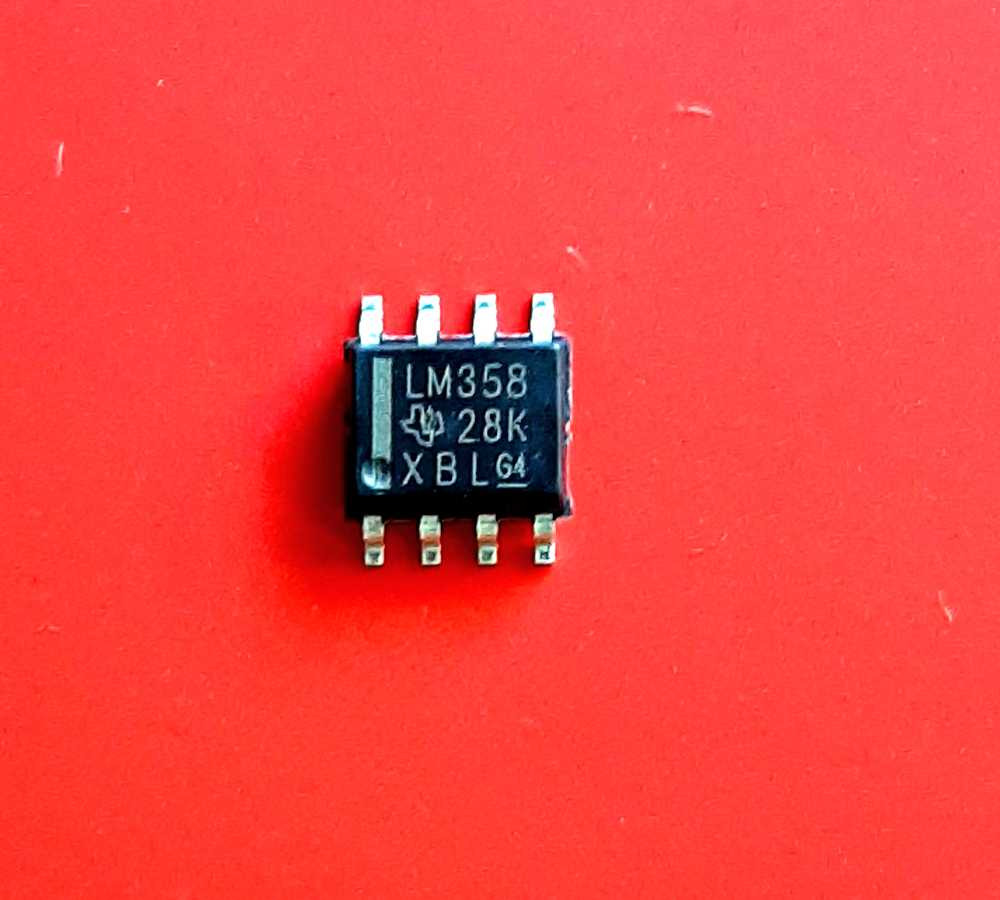

LM358 IC SMD Low-Power, Dual-Operational Amplifiers

(0 reviews)
Estimate Shipping Time: 2 Days

Rs9.00 /PC
(In stock)
Total Price

Reviews & Ratings

0 out of 5.0
(0 reviews)
There have been no reviews for this product yet.
LM358 IC Price | LM358 IC SMD Buy Online India || LM358 IC SMD Low-Power, Dual-Operational Amplifiers.

The LM358 series consists of two independent, high gain, internally frequency compensated operational amplifiers which were designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage.

Application areas include transducer amplifiers, DC gain blocks and all the conventional op-amp circuits which now can be more easily implemented in single power supply systems. For example, the LM158 series can be directly operated off of the standard 3.3-V power supply voltage which is used in digital systems and will easily provide the required interface electronics without requiring the additional ±15-V power supplies.

Features :

  • Available in 8-bump DSBGA chip-sized package
  • Internally frequency compensated for unity gain
  • Large DC voltage gain: 100 dB
  • Wide bandwidth (unity gain): 1 MHz (temperature compensated)
  • Very low supply current drain (500 μA) essentially independent of supply voltage
  • Low input offset voltage: 2 mV
  • Input common-mode voltage range includes ground
  • Differential input voltage range equal to the power supply voltage
  • Large output voltage swing

Applications :

  • Active filters
  • General signal conditioning and amplification
  • 4-mA to 20-mA current loop transmitters
  • Inverter

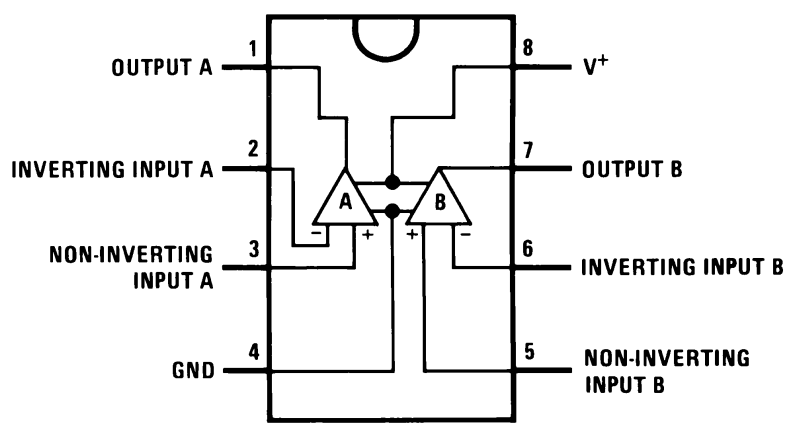

LM358 Pin Configuration and Functions :

Download LM358 Datasheet PDf
