PAX SMD TLV70450DBVR Voltage Regulator IC.

TLV704 24-V Input Voltage, 150-mA, Ultralow IQ Low-Dropout Regulators. The TLV704 series of low-dropout (LDO) regulators are ultralow quiescent current devices designed for extremely power-sensitive applications. Quiescent current is virtually constant over the complete load current and ambient temperature range.

Features :

• Wide Input Voltage Range: 2.5 V to 24 V
• Low 3.2-μA Quiescent Current
• Ground Pin Current: 3.4 μA at 100-mA IOUT
• Operating Junction Temperature: –40°C to 125°C
• Available in SOT23-5 Package

Applications :

• Ultralow Power Microcontrollers
• Fire Alarms and Smoke Detector Systems
• Industrial and Automotive Applications
• Inverter

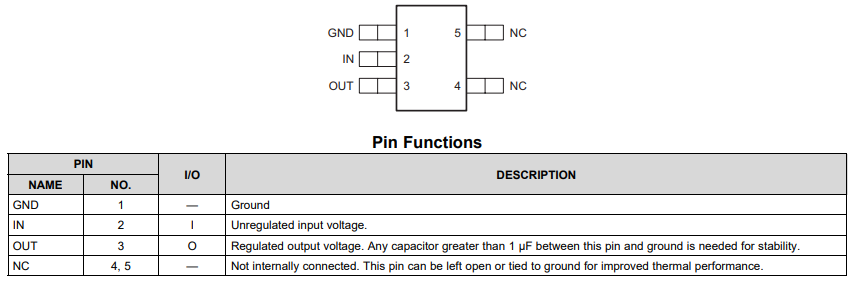

Pin Configuration and Functions :

Absolute Maximum Ratings :

• VIN Input voltage range 24 V
• Output voltage range 1.2 5 V
• VOUT DC output accuracy –2% 2%
• ICL Output current limit VOUT = 0 V 160 1000 mA
• Operating junction TJ –40 125 °C
