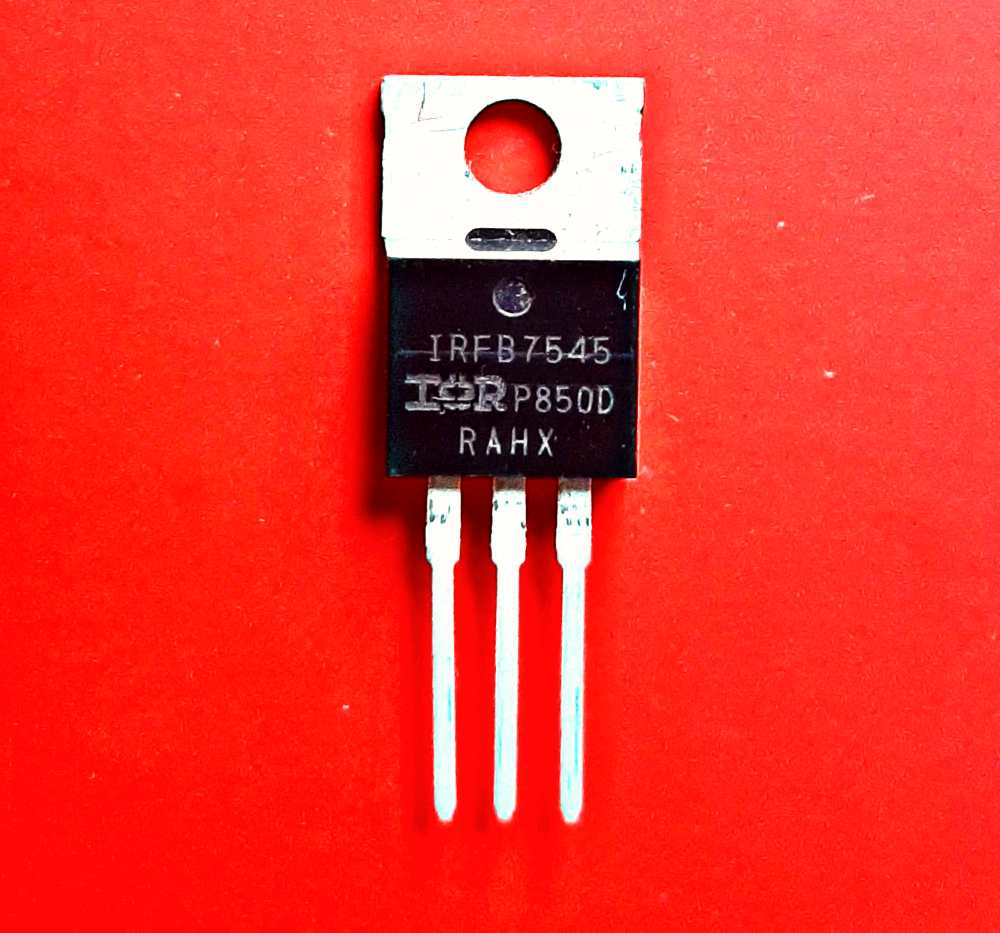

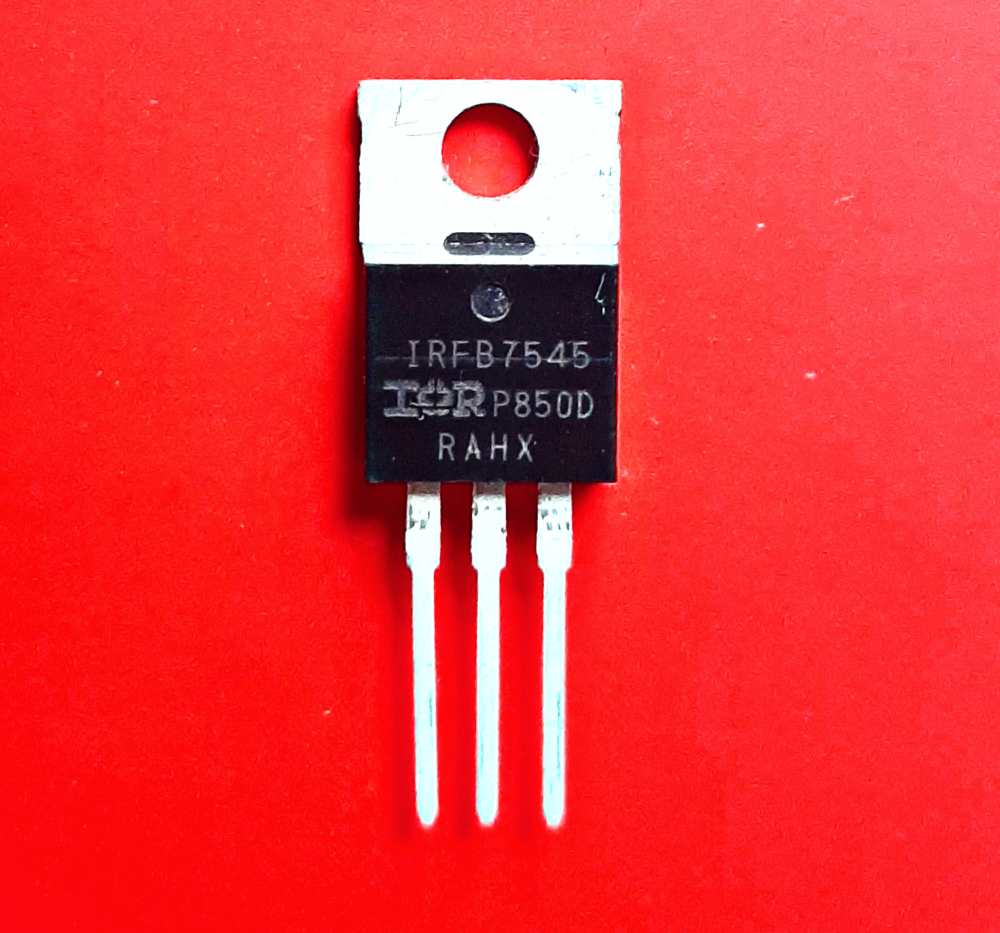

IRFB7545PbF 60V 95A HEXFET® Power MOSFET

(0 reviews)
Estimate Shipping Time: 10 Days

Price
Rs33.00 /Nos
Quantity
(In stock)
Total Price
Share

Reviews & Ratings

0 out of 5.0
(0 reviews)
There have been no reviews for this product yet.
IRFB7545PbF 60V 95A HEXFET® Power MOSFET || IRFB7545 MOSFET Price || IRF7545 MOSFET.
Benefits :
  • Improved gate, avalanche and dynamic dV/dt ruggedness
  • Fully characterized capacitance and avalanche SOA
  • Enhanced body diode dV/dt and dI/dt capability
  • Lead-free, RoHS compliant
  • Base part number: IRFB7545PbF
  • Package Type: TO-220
  • Standard Pack: Tube

Application :
  • Brushed motor drive applications
  • BLDC motor drive applications
  • Battery powered circuits
  • Half-bridge and full-bridge topologies
  • Synchronous rectifier applications
  • Resonant mode power supplies
  • OR-ing and redundant power switches
  • DC/DC and AC/DC converters
  • DC/AC inverters
Absolute Maximum Rating :


ID @ TC = 25°C
Continuous Drain Current, VGS @ 10V
95A
ID @ TC = 100°C
Continuous Drain Current, VGS @ 10V
67A
IDM
Pulsed Drain Current
380A
PD @TC = 25°C
Maximum Power Dissipation
125W

Linear Derating Factor
0.83

W/°C

VGS
Gate-to-Source Voltage
± 20
V
TJ
Operating Junction
-55 to + 175
°C

Soldering Temperature, for 10 seconds (1.6mm from case)
300°C
RG
Gate Resistance
2.3ohm



Download IRFB7545PbF MOSFET Datasheet PDF.


WARNINGS :

Due to technical requirements products may contain dangerous substances. For information on the types in question please contact your nearest Infineon Technologies office.

Except as otherwise explicitly approved by Infineon Technologies in a written document signed by authorized representatives of Infineon Technologies, Infineon Technologies’ products may not be used in any applications where a failure of the product or any consequences of the use thereof can reasonably be expected to result in personal injury
