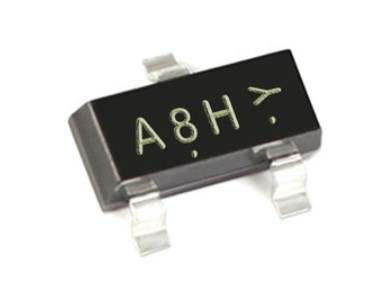

A8H SMD Transistor LMUN2231LT1G.

NPN Silicon Surface Mount Transistor with Monolithic Bias Resistor Network This new series of digital transistors is designed to replace a single device and its external resistor bias network. The BRT (Bias Resistor Transistor) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base-emitter resistor. The BRT eliminates these individual components by integrating them into a single device. The use of a BRT can reduce both system cost and board space. The device is housed in the SOT-23 package which is designed for low power surface mount applications.

• Simplifies Circuit Design
• Reduces Board Space and Component Count
• The SOT-23 package can be soldered using wave or reflow. The modified gull-winged leads absorb thermal stress during soldering eliminating the possibility of damage to the die.

MAXIMUM RATINGS :

• Collector-Base Voltage VCBO 50 Vdc
• Collector-Emitter Voltage VCEO 50 Vdc
• Collector Current IC 100 mAdc
• Total Power Dissipation @ TA = 25°C (Note 1.) Derate above 25°C PD *246 1.5 mW °C/W
• LMUN2231LT1 A8H 2.2 2.2

NPN Silicon Surface Mount Transistor with Monolithic Bias Resistor Network .
