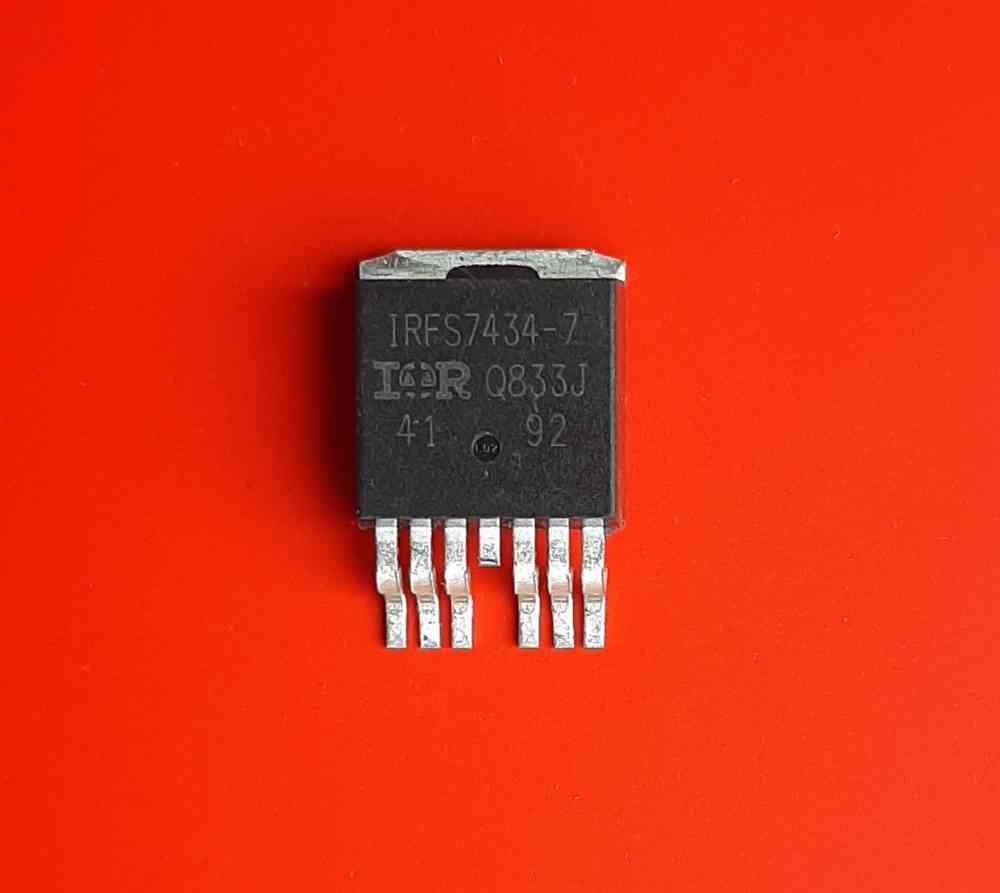

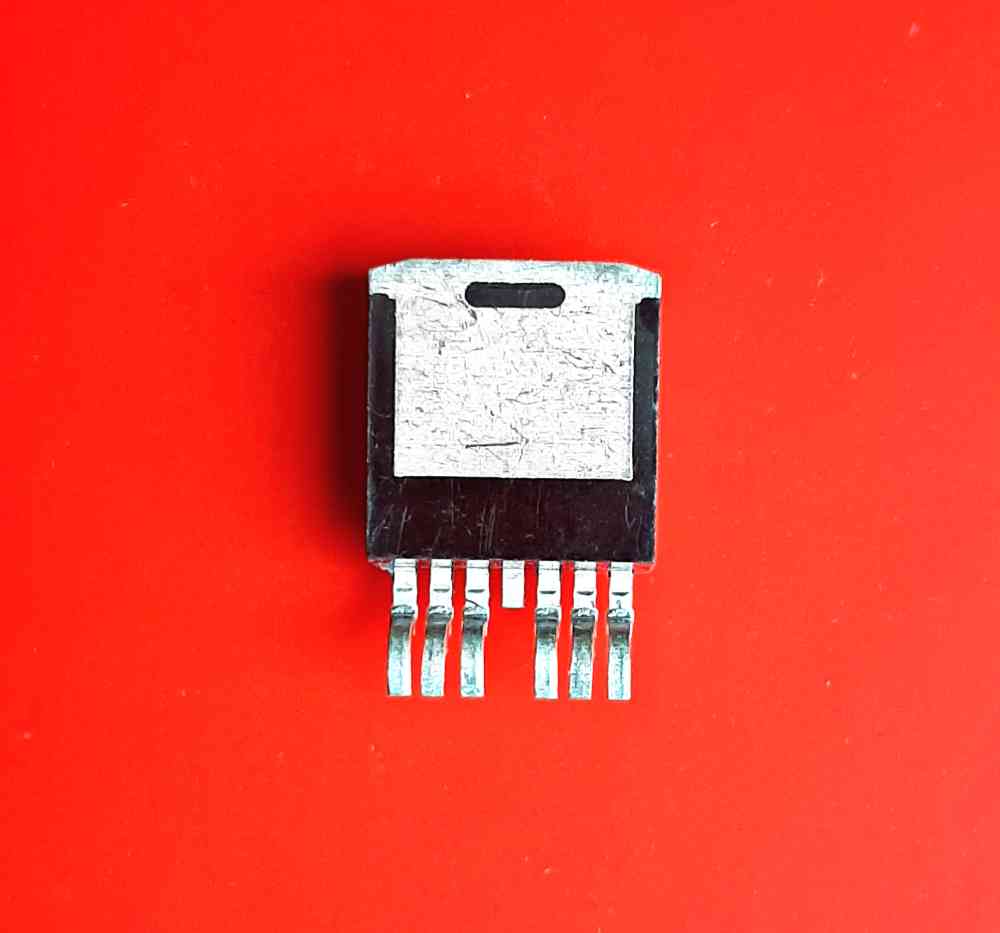

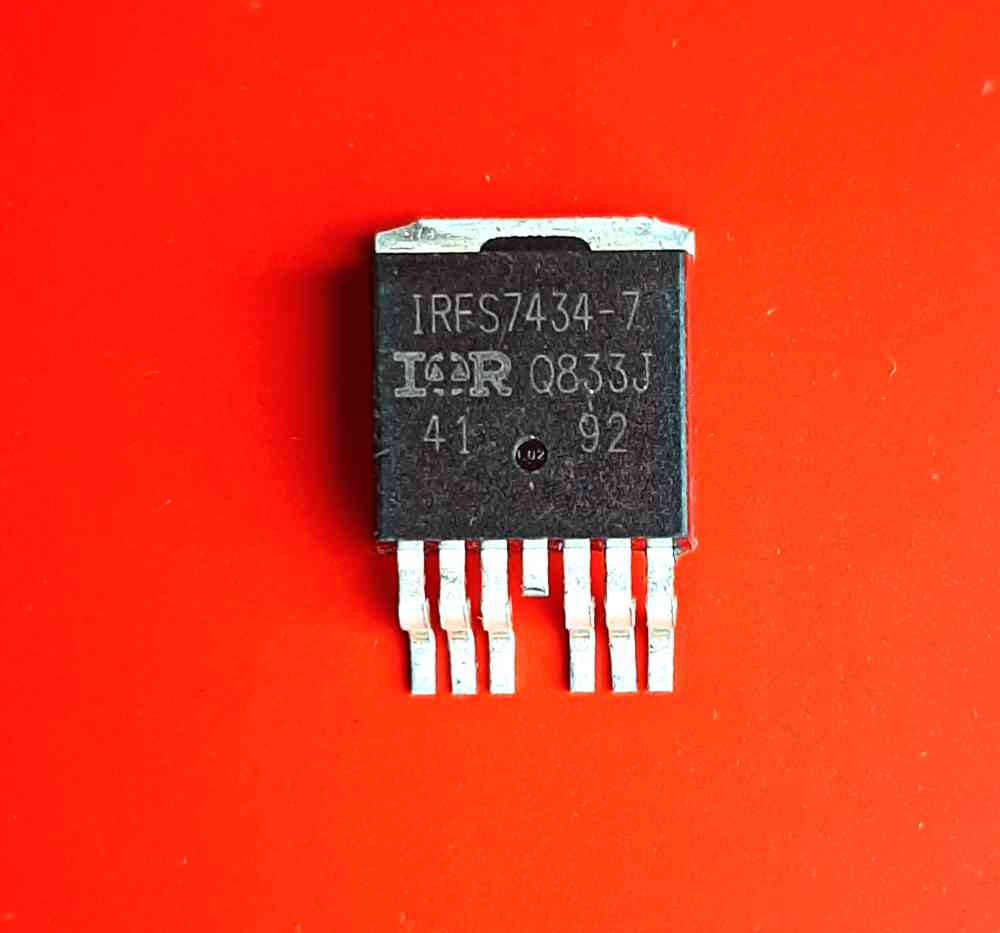

IRFS7434-7PPbF 240A 40V Power MOSFET

(0 reviews)
Estimate Shipping Time: 10 Days

Price
Rs165.20 /PC
Quantity
(In stock)
Total Price
Share

Reviews & Ratings

0 out of 5.0
(0 reviews)
There have been no reviews for this product yet.
IRFS7434-7PPbF 240A 40V Power MOSFET || IRFS7434-7PPbF MOSFET Price.

Application

  • Brushed Motor drive applications
  • BLDC Motor drive applications
  • Battery powered circuits
  • Half-bridge and full-bridge topologies
  • Synchronous rectifier applications
  • DC/DC and AC/DC converters
  • DC/AC Inverters Benefits

Benefits :

  • Improved Gate, Avalanche and Dynamic dV/dt Ruggedness
  • Fully Characterized Capacitance and Avalanche SOA
  • Enhanced body diode dV/dt and dI/dt Capability
  • Lead-Free, RoHS Compliant
  • Base part number: IRFS7434-7PPbF
  • Package Type: D2 Pak-7Pin

IRFS7434-7PPbF Pinout

GDS
GateDrain
Source

Absolute Maximum Rating

  • ID @ TC = 25°C Continuous Drain Current, VGS @ 10V (Silicon Limited): 362A
  • ID @ TC = 100°C Continuous Drain Current, VGS @ 10V (Silicon Limited): 229A
  • ID @ TC = 25°C Continuous Drain Current, VGS @ 10V (Wire Bond Limited) 240A
  • PD @TC = 25°C Maximum Power Dissipation: 245W
  • VGS Gate-to-Source Voltage: ± 20 V
  • TJ Junction Temperature Range: -55 to + 150°C
