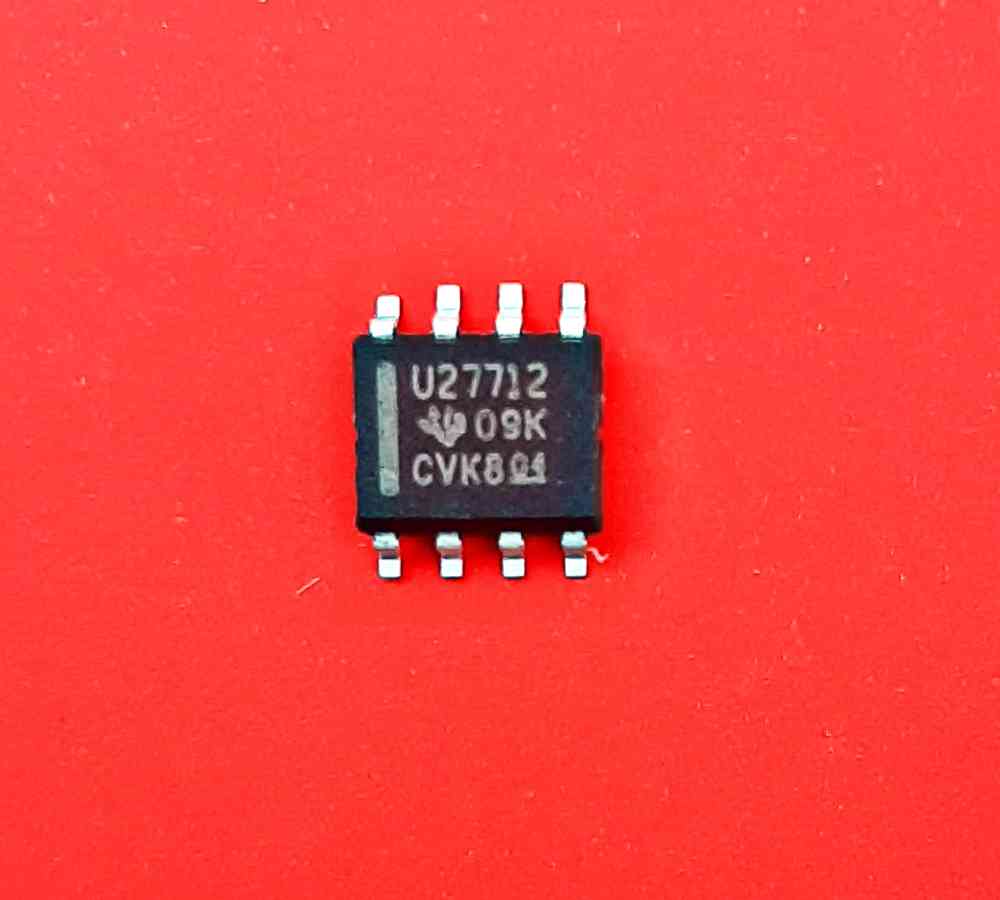

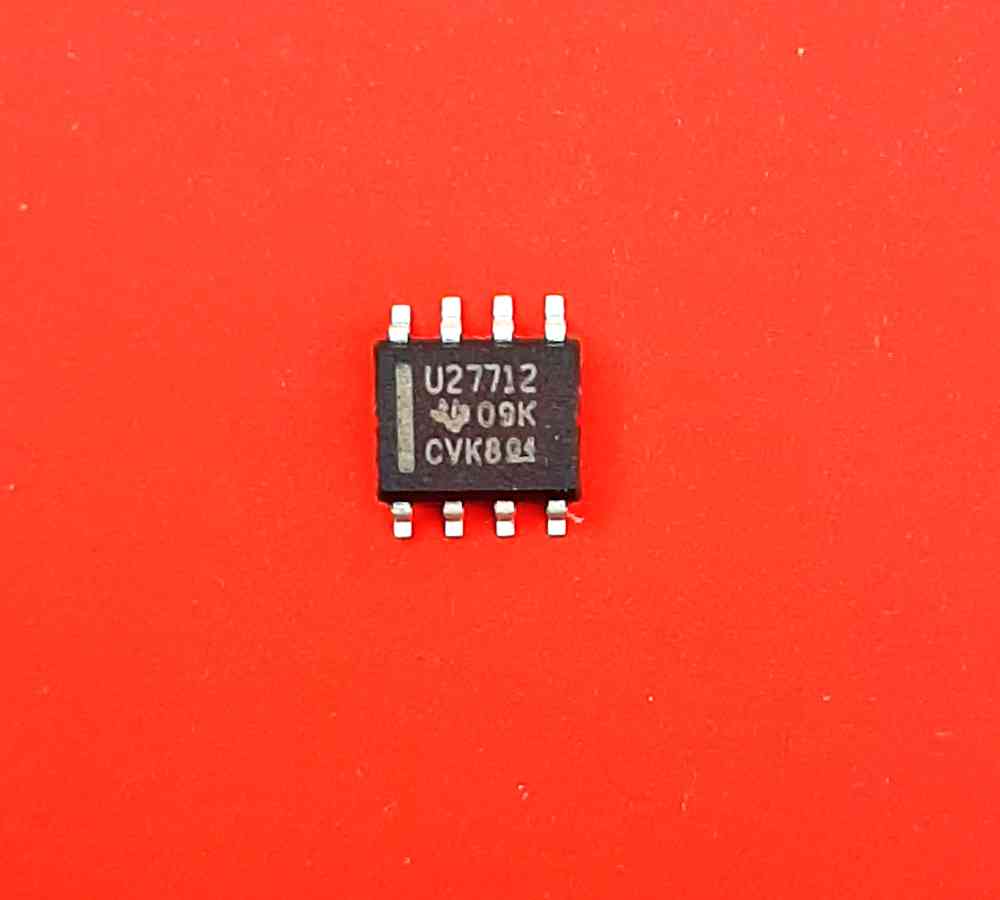

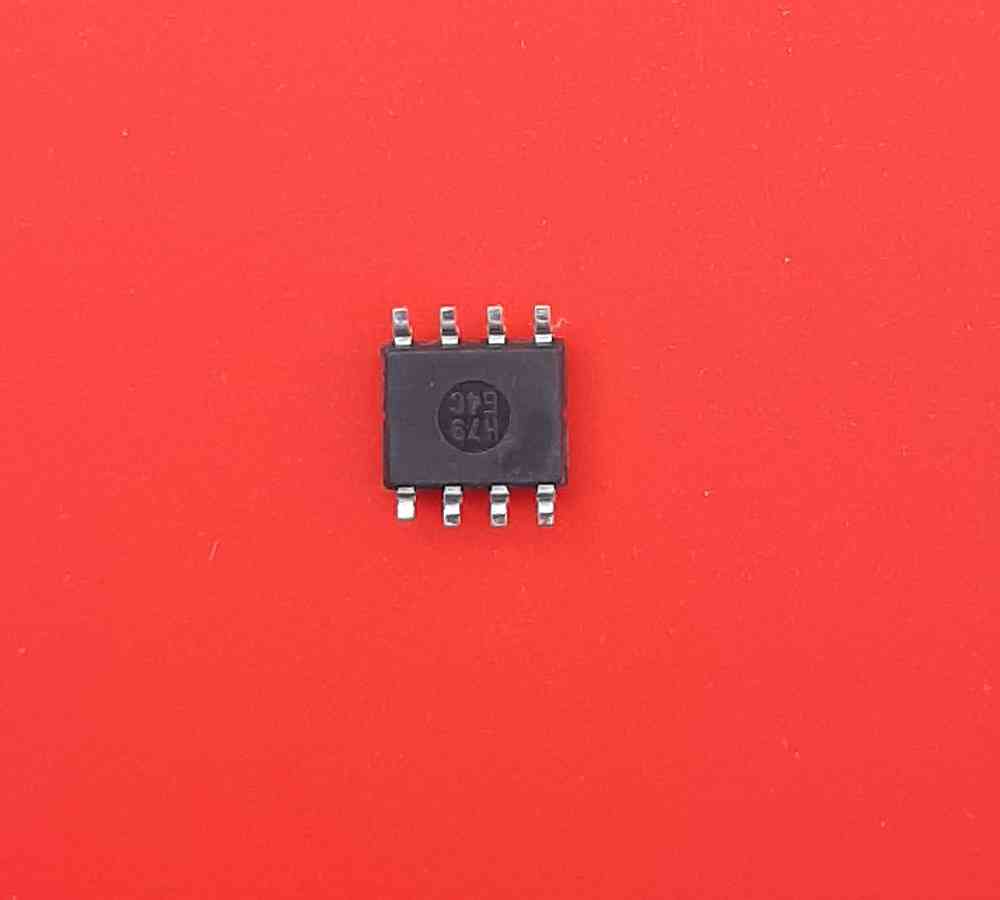

UCC27712 High-Side Low-Side Gate Driver IC

(0 reviews)
Estimate Shipping Time: 2 Days

Price
Rs190.00 /PC
Quantity
(In stock)
Total Price
Share

Reviews & Ratings

0 out of 5.0
(0 reviews)
There have been no reviews for this product yet.

UCC27712 High-Side Low-Side Gate Driver IC. || U27712 IC High-Side Low-Side Gate Driver SMD IC.

UCC27712 620-V, 1.8-A, 2.8-A High-Side Low-Side Gate Driver with Interlock.The UCC27712 is a 620-V high-side and low-side gate driver with 1.8-A source, 2.8-A sink current, targeted to drive power MOSFETs or IGBTs.

The recommended VDD operating voltage is 10-V to 20-V for IGBT's and 10-V to 17-V for power MOSFETs.

The UCC27712 includes protection features where the outputs are held low when the inputs are left open or when the minimum input pulse width specification is not met. Interlock and deadtime functions prevent both outputs from being turned on simultaneously. In addition, the device accepts a wide range bias supply range and offers UVLO protection for both the VDD and HB bias supply.

Developed with TI's state of the art high-voltage device technology, the device features robust drive with excellent noise and transient immunity including large negative voltage tolerance on its inputs, high dV/dt tolerance, wide negative transient safe operating area (NTSOA) on the switch node (HS), and interlock.

Features :

  • High-side and low-side configuration
  • Dual inputs with output interlock and 150-ns deadtime
  • Fully operational up to 620-V, 700-V absolute maximum on HB pin
  • 10-V to 20-V VDD recommended range
  • Peak output current 2.8-A sink, 1.8-A source
  • dv/dt immunity of 50 V/ns
  • Logic operational up to –11 V on HS pin
  • Negative voltage tolerance on inputs of –5 V
  • Large negative transient safe operating area
  • UVLO protection for both channels
  • Small propagation delay (100-ns typical)
  • Delay matching (12-ns typical)
  • Floating channel designed for bootstrap operation
  • Low quiescent current
  • TTL and CMOS compatible inputs
  • Industry standard SOIC-8 package
  • All parameters specified over temperature range, –40 °C to +125 °C

Applications :

  • Motor drive (stepper motors, HVAC, fans, power tools, robotics, drones)
  • Bridge converters in offline AC/DC power supplies
  • High-density switch mode power supplies for server, telecom, IT and industrial infrastructures
  • DC-to-AC inverters

Electrical Characteristics :

  • Gate Type: IGBT, N-Channel, P-Channel MOSFET
  • Voltage - Supply: 10V ~ 20V
  • Logic Voltage - VIL, VIH: 1.5V, 1.6V
  • Current - Peak Output (Source, Sink): 1.8A, 2.8A
  • High Side Voltage - Max (Bootstrap): 600 V
  • Operating Temperature: -40°C ~ 125°C (TJ)
  • Mounting Type: Surface Mount
  • Package: 8-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 8-SOIC
  •  Standard Package: 2,500Pc
Download U27712 IC Datasheet PDF
