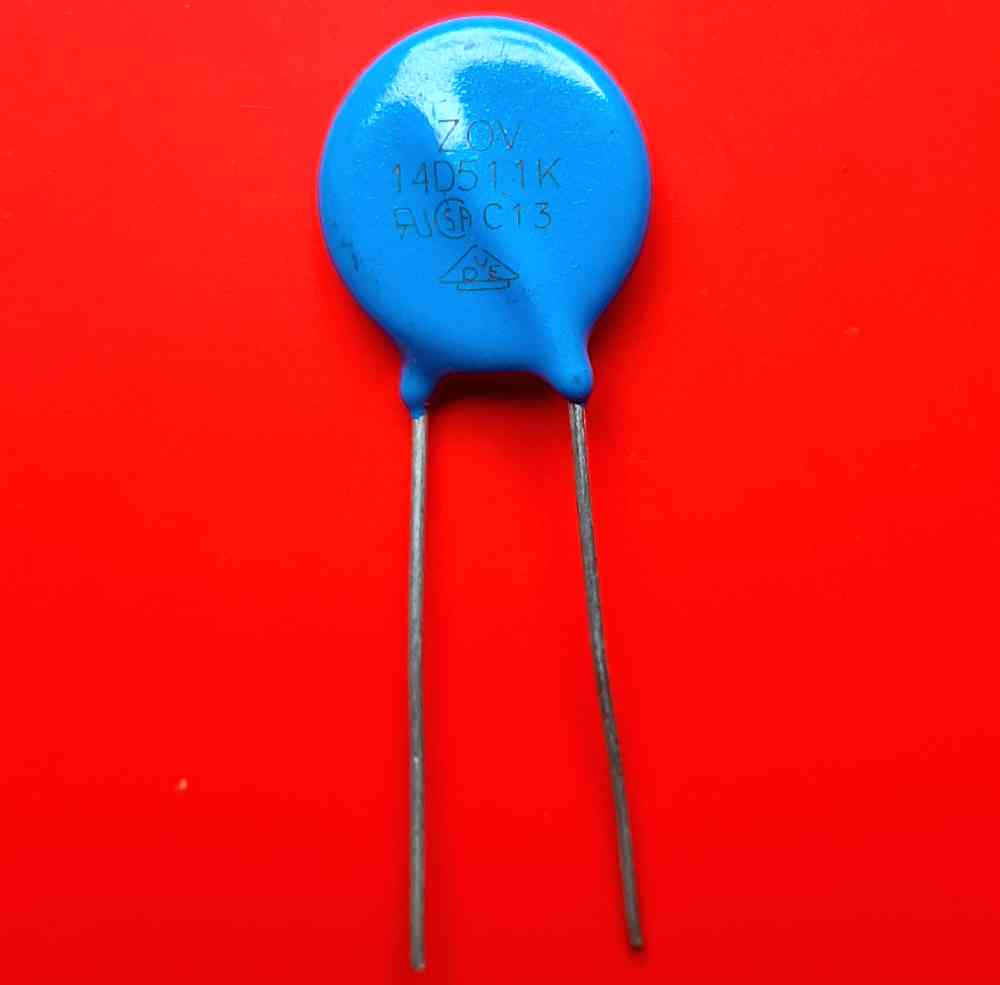

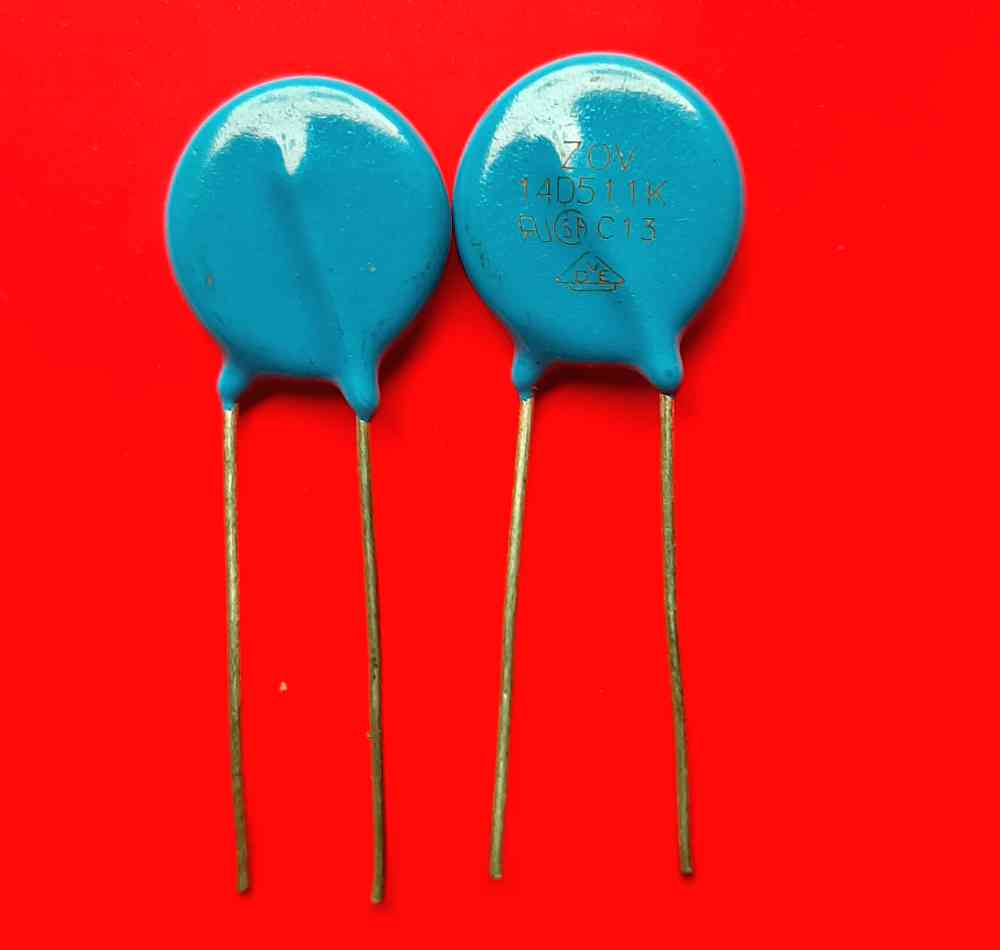

MOV 14D511K Metal Oxide Varistor. || ZOV 14D511K MOV price.

The MOV-14D511K Series of 14 mm radial leaded varistor devices protects against overvoltage transients such as lightning, power contact and power induction. The metal oxide varistors offer a choice of varistor voltages from 18 V to 1800 V and Vrms voltages from 11 V to 1100 V.

Features :

• Fast Response
• Excellent Voltage Ratio
• High Stabilization of Circuit Voltage
• Unparalleled absorption for transient voltage characteristics
• Bilateral and Symmetrical V-I characteristics curve

Application:

• Surge protection in consumer electronics
• Absorption of switching surge from various kinds of relays and electromagnetic valves.
• Electrostatic discharge and spike noise suppression
• Protection of various kinds of transistors, diodes, triacs, thyristors, ICs.

Specification:-

• Varistor Voltage: 510V
• Tolerance: ±10%
• Element Diameter: 14mm
• Model: ZOV-14D511K
• Operating Temperature: -40°C to 105°C
• Maximum Clamping Voltage: 845V @ 50A
• Rated Power: 0.6W
• Capacitance: 450pF
• AC Vrms: 320V
• DC Voltage: 410V
• Mounting Type: Through Hole
• Led Spacing Pitch: 10mm
• Approx Weight: 3gm

Download 14D511k MOV Datasheet PDF.
