The resistor is constructed on top of a high-grade ceramic body. Internal metal electrodes are added on each end to make the contacts to the thick film resistive element. The composition of the resistive element is a noble metal imbedded into a glass and covered by a second glass to prevent environmental influences. The resistor is laser trimmed to the rated resistance value. The resistor is covered with a protective epoxy coat, finally the two external terminations (matte tin on Ni-barrier) are added.
SMD Resistor CONSTRUCTION Outlines :
TECHNICAL SPECIFICATIONS :
|Resistor Chip size||1206|
± 50 ppm/K; ± 25 ppm/K
|Mounting Type||Surface mount|
|Temperature Range||-55°C to +125°C|

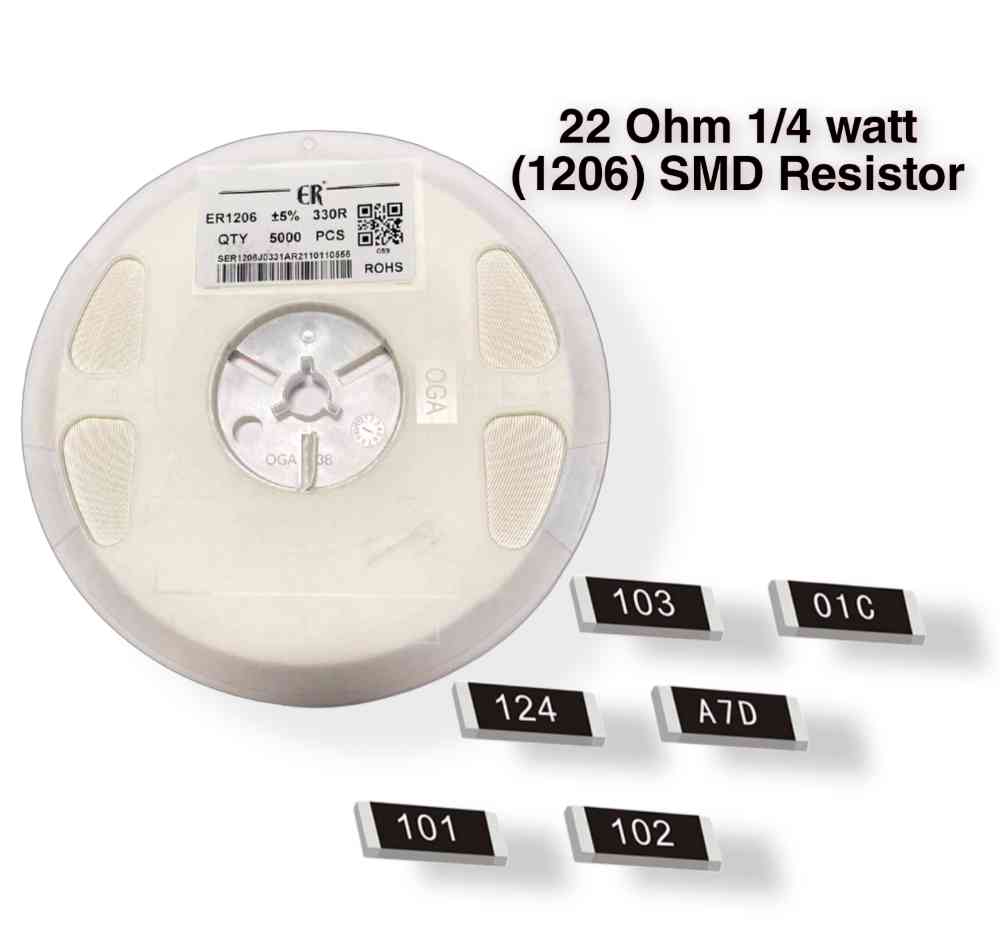

22 Ohms ±5% 0.25W, 1/4W Chip Resistor 1206 (3216 Metric) Moisture Resistant Thick Film.
